Monolithic Crystal Filter 10.7 MHz
Channel spacing 12.5 kHz

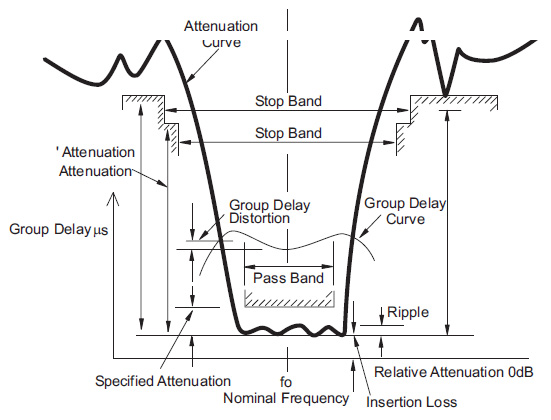

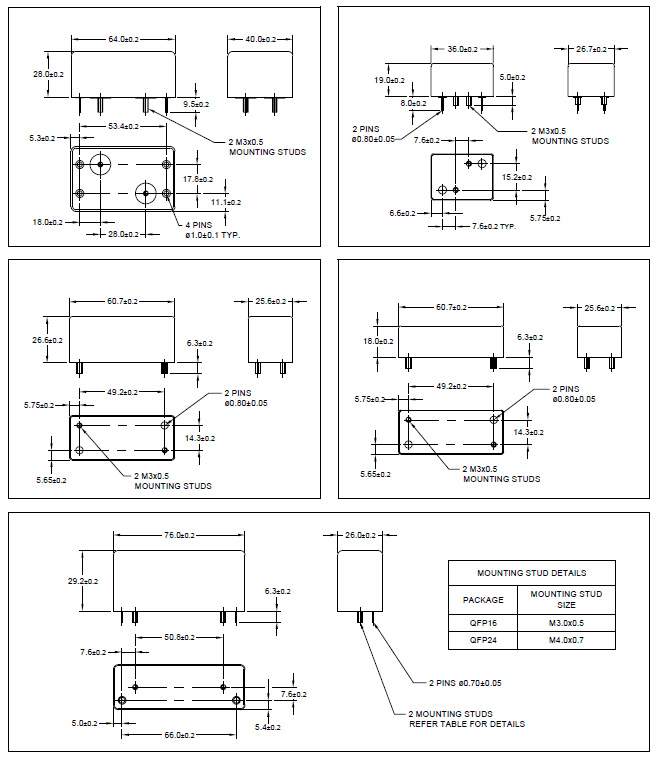

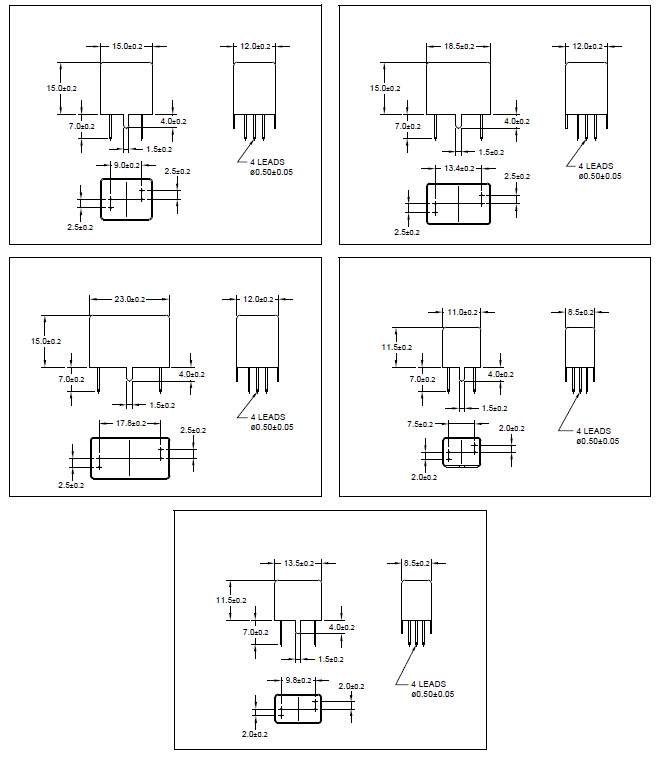

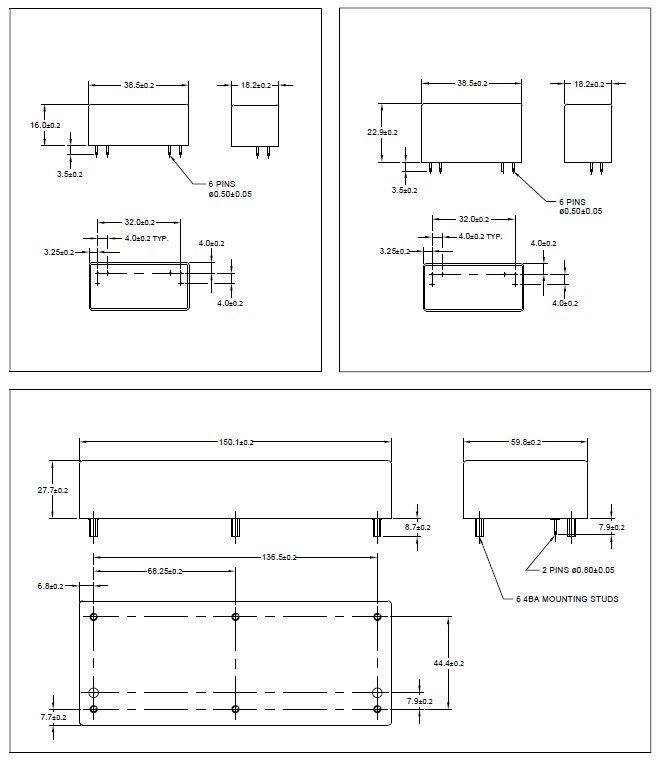

Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
MCF10.7MHz No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF

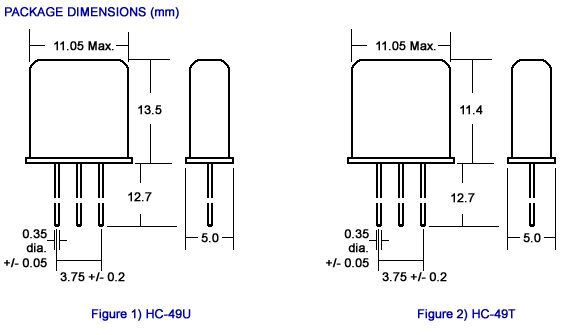

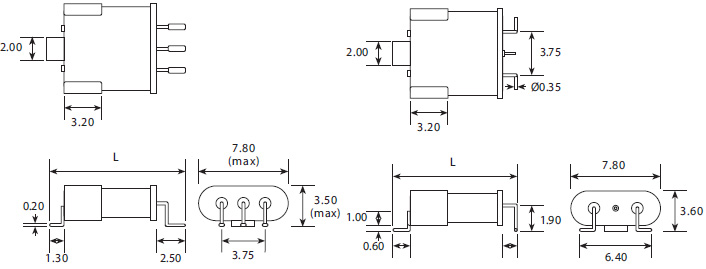

10M07A 2 1.5 3.0 3.75 0.5 2.5 20 18.00 35   1800 3.50   49U/T

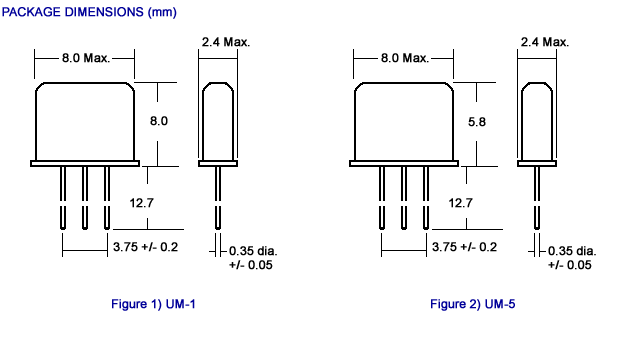

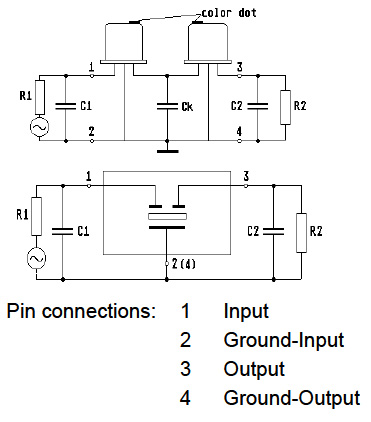

10M07B 4 2.5 3.0 3.75 1.0 3.0 40 14.00 65   1800 3.50 Ck=12pF 2 UM-1
10M07C 6 4.0 3.0 3.75 1.0 2.4 60 12.50 65 50.00 500 5.00 tg<46µs;
fo±2.4k
M 17
10M07D 8 3.5 3.0 3.75 2.0 3.0 65 8.75 90 12.50 2200 2.00   M 17
10M07E 10 4.0 3.0 3.75 2.0 3.0 70 7.50 90 11.00 910 25.00   M 17
Channel spacing 20 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
 MCF10.7MHz No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
10M12A 2 1.5 3.0 6.00 0.5 3.0 20 25.00 35 300 2500 2.50   UM-1
10M12B 4 2.5 3.0 6.00 1.5 4.0 40 20.00 60 300 1800 2.50 Ck=10pF 2 UM-1
10M12C 6 3.0 3.0 6.00 2.0 4.0 45 14.00 65 20.00 3900 0.00   V 4
10M12D 8 4.0 3.0 6.00 2.0 4.0 70 14.00 90 20.00 2800 1.50   V 5.1
10M12E 10 4.0 3.0 6.00 2.0 4.8 70 12.00 90 15.00 910 25.00   M 17
Channel spacing 25 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
 MCF10.7MHz No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
10M15A 2 0.5 3.0 7.50 1.0 5.5 20 30.00 40 150.00 3000 0.00   UM-1
10M15B 4 2.5 3.0 7.50 1.0 5.0 40 25.00 65   3000 1.50 Ck=5pF 49U/T
10M15C 6 3.0 3.0 7.50 2.0 6.0 50 17.50 65 25.00 3300 0.50   V 4
10M15D 8 3.5 3.0 7.50 2.0 6.0 70 17.50 90 25.00 3000 1.00   V 5.1
10M15E 10 4.0 6.0 7.50 2.0 6.0 75 15.00 90 17.50 3000 1.00   V 6.2
Channel spacing 50 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
 MCF10.7MHz No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
10M30A 2 1.5 3.0 15.00 1.0 10.0 25 75.00 40 200 5000 -0.50   49U/T
10M30B 4 2.5 3.0 15.00 1.0 10.0 30 40.00 40 50.00 5500 -1.00 Ck=0pF! 2 UM-1
10M30C 6 3.0 3.0 15.00 2.0 12.0 45 35.00 65 50.00 910 25.00   V 5.1
10M30D 8 3.0 6.0 15.00 2.0 12.0 70 35.00 90 50.00 4000 -1.80   V 5.1
10M30E 10 4.0 3.0 15.00 2.0 12.0 70 30.00 90 40.00 910 25.00   M 17
Monolithic Crystal Filter 21.4 MHz
Channel spacing 12.5 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
 MCF-21.4MHz No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
21M07A 2 1.5 3.0 3.75 1.0 2.0 15 12.50 30 30.00 850 6.00  UM-5
21M07B 4 2.5 3.0 3.75 1.0 3.0 40 14.00 65 50.00 1600 3.00 Ck=8pF  UM-5
21M07C 6 3.0 3.0 3.75 2.0 3.0 45 8.75 65 12.50 850 5.00  V 2.1
21M07D 8 3.5 3.0 3.75 2.0 3.0 65 9.00 90 12.50 470 15.00  M 3
Channel spacing 20 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
 MCF-21.4MHz No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
21M12A 2 1.0 3.0 6.00 1.0 4.0 20 25.00 35   900 0.00   UM-1/5
21M12B 4 2.0 3.0 6.00 1.0 4.5 40 20.00 65 50.00 1200 2.50 Ck=9pF 2 UM-1/5
21M12C 6 2.5 3.0 6.00 2.0 4.0 45 14.00 65 20.00 1600 1.00   V 2.1
21M12D 8 3.0 3.0 6.00 2.0 4.0 65 14.00 90 20.00 1200 2.50   V 2.1
21M12E 10 4.0 6.0 6.00 2.0 4.5 75 14.00 90 16.00 1200 2.50   V 3
Channel spacing 25 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
 MCF-21.4MHz No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
21M15A 2 1.5 3.0 7.50 0.5 4.0 18 25.00 25 40.00 1500 2.50   UM-1/5
21M15B 4 2.0 3.0 7.50 1.0 5.0 40 25.00     1600 2.00 Ck=7pF 2 UM-1/5
21M15C 6 3.0 3.0 7.50 2.0 6.0 45 17.50 65 25.00 1500 2.00   V 2.1
21M15D 8 3.0 3.0 7.50 2.0 6.0 65 17.50 90 25.00 1600 1.50   V 2.1
21M15E 10 4.0 6.0 7.50 2.0 6.0 75 16.00 90 18.00 1500 2.00   V 3
Channel spacing 35 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
 MCF-21.4MHz No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
21M20A 2 1.5 3.0 10.00 0.5 8.0 15 30.00 35 350.00 1800 1.00   UM-1/5
21M20B 4 1.5 3.0 10.00 0.5 7.0 40 35.00 65 350.00 1900 1.00 Ck=5.2pF 2 UM-1/5
21M20C 6 2.5 3.0 10.00 2.0 7.5 60 28.00 60   1600 1.00   V 2.1
21M20D 8 4.0 3.0 10.00 2.0 6.0 6 13.00 70 24.00 470 15.00   M 3
21M20E 10 3.0 6.0 10.00 2.0 7.5 65 17.50 90 25.00 1500 2.50   V 3
Channel spacing 50 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
 MCF-21.4MHz No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
21M30A 2 1.5 3.0 15.00 1.0 10.0 15 45.00 20 75.00 1500 1.00   UM-1/5
21M30B 4 2.0 3.0 15.00 1.5 10.0 40 50.00 60   2200 0.50 Ck=3.3pF 2 UM-1/5
21M30C 6 3.0 3.0 15.00 2.0 12.0 60 45.00 80 100.00 50 0.00   M 3
21M30D 8 4.0 3.0 15.00 2.0 12.0 65 35.00 80 50.00 470 15.00   M 3
21M30E 10 4.0 3.0 15.00 2.0 12.0 70 30.00 90 40.00 50 0.00   V 6.2
Monolithic Crystal Filter 45 MHz
Channel spacing 12.5 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case

MCF-45.00MHZ

No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
45M07A 2 2.0 3.0 3.75 1.0 3.0 15 12.50 45   350 11.00   UM-1/5
45M07B 4 4.0 3.0 3.75 1.0 2.5 30 12.50 90 10.00 350 6.50 Ck=18pF 2 UM-1/5
45M07C 6 6.0 3.0 3.75 2.0 3.0 50 12.50 80 10.00 350 5.00   V 2.1
45M07D 8 7.0 3.0 3.75 2.0 3.0 65 12.50 80 25.00 350 5.00   V 3
Channel spacing 20 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
MCF-45.00MHZ No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
45M12A 2 3.0 3.0 6.00 1.0 3.6 15 20.00 65 910.00 550 6.00   UM-1/5
45M12B 4 4.0 3.0 6.00 1.0 4.0 30 20.00 45 27.00 500 4.00 Ck=12pF 2 UM-1/5
45M12C 6 4.0 3.0 6.00 2.0 4.0 60 20.00 90 910.00 500 4.50   V 2.1
Channel spacing 25 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
MCF-45.00MHZ No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
45M15A 2 2.0 3.0 7.50 1.0 6.0 15 25.00 65 910.00 650 4.70   UM-1/5
45M15B 4 3.0 3.0 7.50 1.0 5.0 30 25.00 90 910.00 650 3.00 Ck=10pF 2 UM-1/5
45M15C 6 5.0 3.0 7.50 2.0 6.0 60 25.00 80 910.00 650 1.50   V 2.1
45M15D 8 6.0 3.0 7.50 2.0 6.0 60 20.00 75 25.00 650 1.50   V 3
Channel spacing 50 kHz
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
MCF-45.00MHZ No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
45M30A 2 2.0 3.0 15.00 1.0 10.0 15 50.00 65 -910.00 650 4.00   UM-1/5
45M30B 4 4.0 1.0 15.00 0.5 10.0 60 15.00 70   50 0.00   M 3
45M30C 6 4.0 3.0 15.00 2.0 10.0 60 40.00 80 60.00 650 2.00   V 2.1
45M30D 8 3.0 3.0 15.00 1.0 10.0 35 25.00 65 35.00 470 3.00   V 3

onolithic Crystal Filter
Selected customer types
Type Pole Loss Passband Ripple Stopband Impedance Remarks Case
  No. /dB /dB /±kHz /dB /±kHz /dB /±kHz /dB /±kHz R/Ohm C/pF
MCF6.0MHz 2 3.0 3.0 1.50 2.0 1.2 18 12.50 65 1500 5500 -2.00   UM-1
MCF9.0MHz 8 5.5 6.0 1.20 2.0 0.8 60 2.50 80 3.20 500 30.00   V 6.2
MCF10.0MHz 2 1.0 3.0 3.80 1.0 2.0 30 40.00 40 60.00 3900 2.00   UM-1
MCF11.0MHz 10 4.0 6.0 4.25 2.0 3.0 70 8.75 90 12.50 50 0.00   M 17
MCF13.0MHz 2 4.0 1.0 12.50 0.5 7.5 15 45.00 40   4000 -0.15   UM-1
MCF15.3MHz 8 3.0 6.0 7.25 2.0 6.2 70 15.00 90 20.00 1000 -1.50   V 5.1
MCF18.304MHz 2 1.0 3.0 15.00 0.5 9.0 15 45.00 20 75.00 2700 0.00   UM-1
MCF19.5MHz 6 3.0 3.0 6.00 1.0 4.8 50 25.00 80 200.00 50 0.00   V 6.2
MCF20.0MHz 2 4.0 3.0 1.25 2.0 1.0 30 10.00 30   200 2.00   UM-1/5
MCF21.0MHz 6 3.0 3.0 6.00 1.0 3.6 50 25.00 80 200.00 50 0.00   V 6.2
MCF26.5MHz 2 3.0 3.0 10.00 1.0 5.0 20 100.00 50 910.00 2500 0.50   UM-1/5
MCF30.0MHz 2 3.0 1.0 20.00 1.0 20.0 20 25.00 30   2600 0.80 tg<3µs;
fo±20kHz
UM-1/5
MCF34.816MHz 4 3.0 3.0 7.50 1.0 5.0 40 25.00 60 50.00 50 0.00   M 3
MCF35.25MHz 10 5.0 6.0 13.00 1.0 8.0 80 25.00 80 50.00 50 0.00 SMD S 14
MCF40.025MHz 6 3.0 1.0 4.00 0.0 4.0 60 25.00 80 40.00 50 0.00   M 7.1
MCF40.048MHz 4 3.0 1.0 4.00 0.0 4.0 60 76.00 80 -48.00 50 0.00   M 7.1
MCF40.083MHz 4 3.0 1.0 2.00 0.0 2.0 20 10.00 40 25.00 100 0.00   S 5.5
MCF41.44MHz 4 3.0 1.0 4.00 1.0 4.0 60 30.00     50 0.00   M 7.1
MCF42.2MHz 4 3.0 1.0 4.00 0.0 4.0 60 25.00 80 -40.00 50 0.00 tg<50µs;
fo±4kHz
M 7.1
MCF44.982MHz 4 4.0 3.0 3.75 1.0 2.5 30 12.50 90 910.00 350 6.50   UM-1/5
MCF45.5MHz 4 4.0 3.0 12.50 1.0 8.0 80 900.00     50 0.00 tg<2.5µs;
fo±8.0kHz
V 21
MCF50.0MHz 6 4.0 1.0 40.00 1.0 40.0 25 70.00 60 125.00 50 0.00   M 17
MCF53.3MHz 6 4.0 1.0 5.00 0.0 5.0 60 30.00 80   50 0.00 VSWR<2 M 17
MCF61.44MHz 2 3.0 3.0 7.50 1.0 5.0 30 100.00 40 500.00 3000 -0.70   UM-1/5
MCF69.98MHz 6 5.0 2.0 3.30 2.0 3.3 65 17.30 65   50 0.00 tg<80µs;
fo±3.3kHz
M 17
MCF70.0MHz 6 6.0 3.0 3.05 2.0 2.5 65 16.00 65   50 0.00 tg<80µs;
fo±3.05kHz
M 17
MCF71.85MHz 6 4.5 6.0 12.50 1.5 9.0 20 30.00 60 55.00 50 0.00 SMD, tg<14µs;fo±9kHz S 3.1
MCF75.0MHz 6 6.0 6.0 18.00 2.0 12.0 60 100.00 80 200.00 50 0.00   M 17
MCF80.167MHz 4 4.0 1.0 3.00 1.0 2.5 20 15.00 30 30.00 100 0.00   S 5.5
MCF90.0MHz 4 6.0 3.0 12.00 1.0 6.0 19 15.00 34 50.00 310 1.2 tg<14µs;fo±9.0kHz 2xS 2
MCF90.0MHz 2 1.0 3.0 15.00 0.5 7.5 16 50.00 30 910.00 3000 -0.70 SMD, tg<6µs;fo±15kHz S 2
